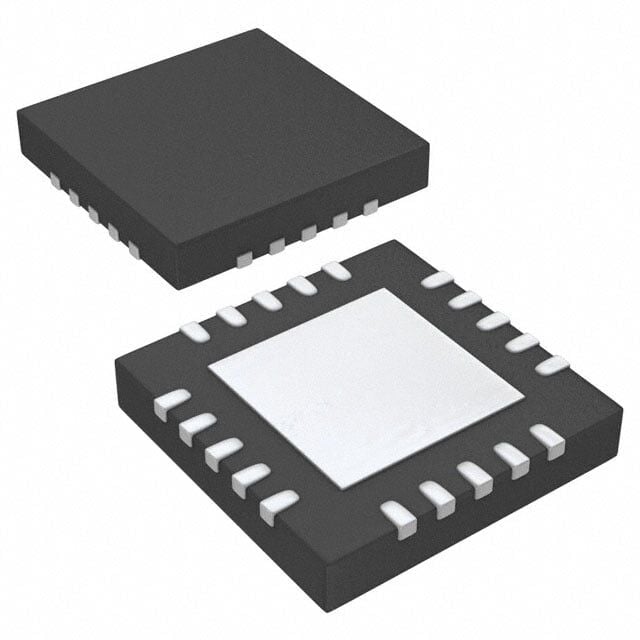

TPS7A8801RTJR Texas Instruments 20-QFN (4x4) Entegre Devre
311,90 TL
32,63 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TPS7A8801RTJR
Stok Adedi
0
Fiyat
5,78 USD + KDV
TPS7A8801RTJR, Texas Instruments üretimi ayarlanabilir pozitif lineer regülatör entegresidir ve 20-QFN (4x4) kılıftadır. 0.8V–5V çıkış aralığında 1A çıkış akımı sunar, maksimum giriş gerilimi 6.5V’tur. Enable, Power Good ve Soft Start özelliklerinin yanı sıra aşırı akım, aşırı sıcaklık ve UVLO korumaları içerir.
TPS7A8801RTJR IC REG LINEAR POS ADJ 1A 20QFN
| Ürün Kodu | TPS7A8801RTJR |
| Control Features | Enable, Power Good, Soft Start |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 3.5 mA |
| Current - Supply (Max) | 4 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 2 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 20-WFQFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| PSRR | 40dB (500kHz) |
| Supplier Device Package | 20-QFN (4x4) |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Max) | 5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage Dropout (Max) | 0.2V @ 1A |
TPS7A8801RTJR Datasheet dosyasına ulaşmak için tıklayınız.
