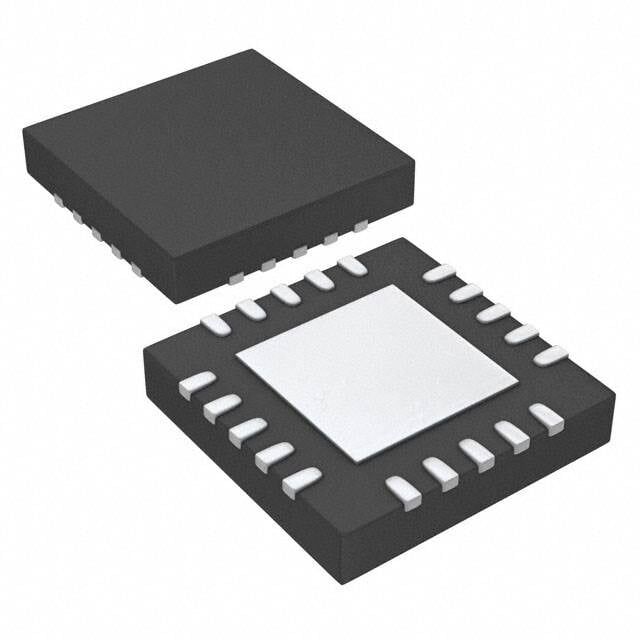

TPS7A3301RGWR Texas Instruments 20-VQFN (5x5) Entegre Devre
TPS7A3301RGWR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
TPS7A3301RGWR Texas Instruments 20-VQFN (5x5) Entegre Devre Hakkında
TPS7A3301RGWR, Texas Instruments üretimi negatif ayarlanabilir lineer regülatör entegresidir. -36V girişe kadar çalışır, -1.18V ile -33V aralığında çıkış ayarı sunar ve 1A çıkış akımı sağlar. Enable ve soft-start özellikleri ile aşırı akım/aşırı sıcaklık korumaları bulunur; 20-VQFN (5x5) SMD pakettedir.
TPS7A3301RGWR IC REG LIN NEG ADJ 1A 20VQFN
| Ürün Kodu | TPS7A3301RGWR |
| Control Features | Enable, Soft Start |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) | 950 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Package / Case | 20-VQFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 72dB (10kHz) |
| Supplier Device Package | 20-VQFN (5x5) |
| Voltage - Input (Max) | -36V |
| Voltage - Output (Max) | -33V |
| Voltage - Output (Min/Fixed) | -1.18V |
| Voltage Dropout (Max) | 0.8V @ 1A |
TPS7A3301RGWR Datasheet dosyasına ulaşmak için tıklayınız.
