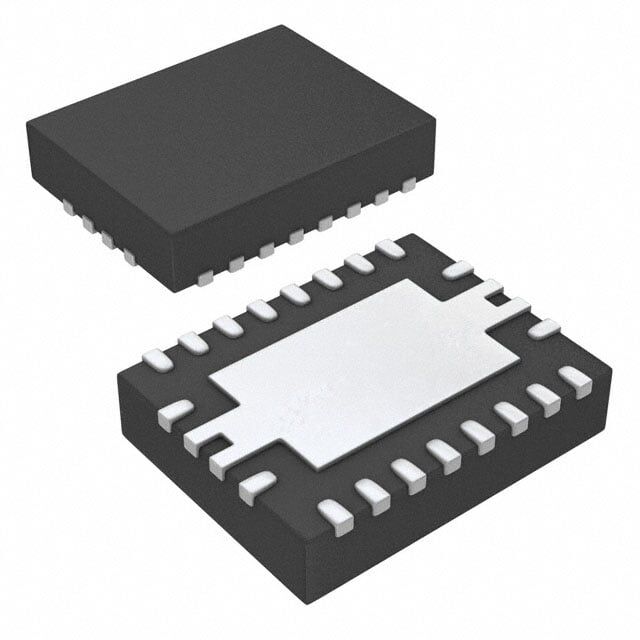

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
TPS40075RHLR Texas Instruments 20-VQFN Buck Kontrol Entegre Devre
TPS40075RHLR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
TPS40075RHLR Texas Instruments 20-VQFN Buck Kontrol Entegre Devre Hakkında
TPS40075RHLR, Texas Instruments üretimi senkron buck (step-down) DC-DC regülatör kontrol entegresidir. 4.5V–28V besleme aralığında çalışır, 1MHz’e kadar anahtarlama frekansı ve clock senkronizasyon desteği sunar. 20-VQFN (3.5x4.5mm) kılıfta, yüzey montaj uygulamaları için uygundur.
TPS40075RHLR IC REG CTRLR BUCK 20VQFN
| Ürün Kodu | TPS40075RHLR |
| Clock Sync | Yes |
| Control Features | Current Limit, Frequency Control, Power Good, Soft Start |
| Duty Cycle (Max) | 95% |
| Frequency - Switching | Up to 1MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Package / Case | 20-VFQFN Exposed Pad |
| Part Status | Active |
| Serial Interfaces | - |
| Supplier Device Package | 20-VQFN (3.5x4.5) |
| Synchronous Rectifier | Yes |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 28V |
TPS40075RHLR Datasheet dosyasına ulaşmak için tıklayınız.
