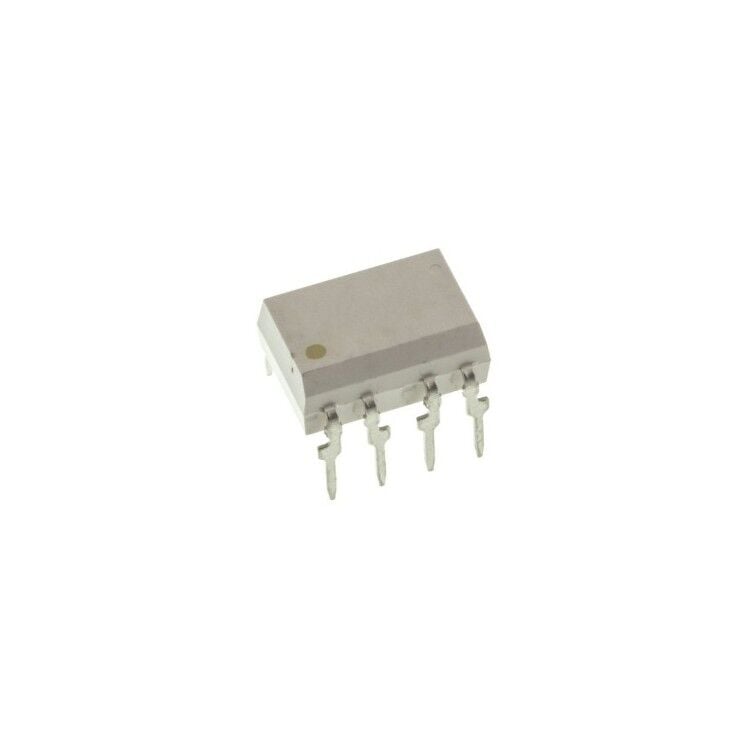

TLP557, P557, PDIP-8 Entegre Devre
94,53 TL
9,89 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
| Montaj Tipi | Through Hole |
|---|---|
| Voltage - Supply | 5V ~ 13V |
| Çalışma Sıcaklığı | -30°C ~ 70°C |
| Üretici Paket/Kılıf | 8-DIP |
| Tip | Power Transistor Driver |
| Current - Output / Channel | 320mA |
| Number of Channels | 1 |
| Input Type | DC |
| Approval Agency | UR |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Forward (Vf) (Typ) | 1.55 V |
| Rise / Fall Time (Typ) | 50ns- 50ns |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 2kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 5µs- 5µs |
| Parça Durumu | Last Time Buy |
