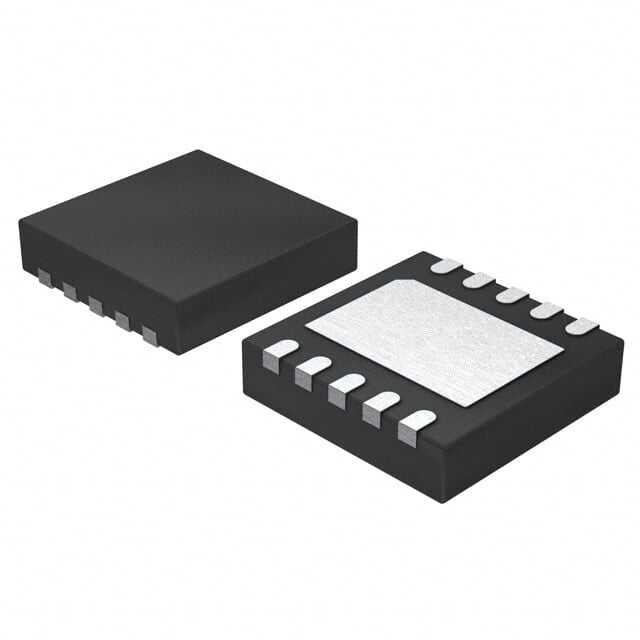

Texas Instruments LP5996SD-2533/NOPB 10-SON Entegre Devre
88,69 TL
9,28 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LP5996SD-2533/NOPB
Stok Adedi
1
Fiyat
1,68 USD + KDV
Texas Instruments LP5996SD-2533/NOPB, 10-SON (3x3) kılıfta çift çıkışlı sabit LDO lineer regülatör entegresidir. 2.5V ve 3.3V çıkış sağlar; 150mA ve 300mA akım kapasitesine sahiptir ve Enable kontrol girişini destekler. 6V’a kadar giriş gerilimi ile çalışır, aşırı sıcaklık ve kısa devre korumaları bulunur.
LP5996SD-2533/NOPB IC REG LINEAR 2.5V/3.3V 10SON
| Ürün Kodu | LP5996SD-2533/NOPB |
| Control Features | Enable |
| Current - Output | 150mA, 300mA |
| Current - Quiescent (Iq) | 110 µA |
| Current - Supply (Max) | 170 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 2 |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 10-WFDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Temperature, Short Circuit |
| PSRR | 58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz) |
| Supplier Device Package | 10-SON (3x3) |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.5V, 3.3V |
| Voltage Dropout (Max) | 0.22V @ 150mA, 0.55V @ 300mA |
LP5996SD-2533/NOPB Datasheet dosyasına ulaşmak için tıklayınız.
