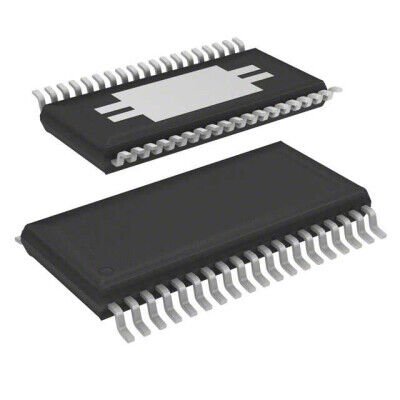

Texas Instruments LM5177DCPR 38-HTSSOP Entegre Devre
604,67 TL
63,26 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LM5177DCPR
Stok Adedi
1
Fiyat
11,27 USD + KDV
LM5177DCPR, buck-boost topolojide pozitif çıkışlı step-up/step-down DC-DC kontrol entegresidir. 3.5V-78V besleme aralığında çalışır ve 100kHz-2MHz anahtarlama frekansını destekler. 38-PowerTFSOP (4.40mm) / 38-HTSSOP SMD kılıftadır.
LM5177DCPR 38-PowerTFSOP (0.173", 4.40mm Width) kılıfta üretilmiştir. Buck-Boost Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 38-HTSSOP
| Ürün Kodu | LM5177DCPR |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 78V |
| Frequency - Switching | 100kHz ~ 2MHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | No |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Dead Time Control, Enable, Power Good, Power On Reset, Soft Start |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 38-PowerTFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 38-HTSSOP |
LM5177DCPR Datasheet dosyasına ulaşmak için tıklayınız.
