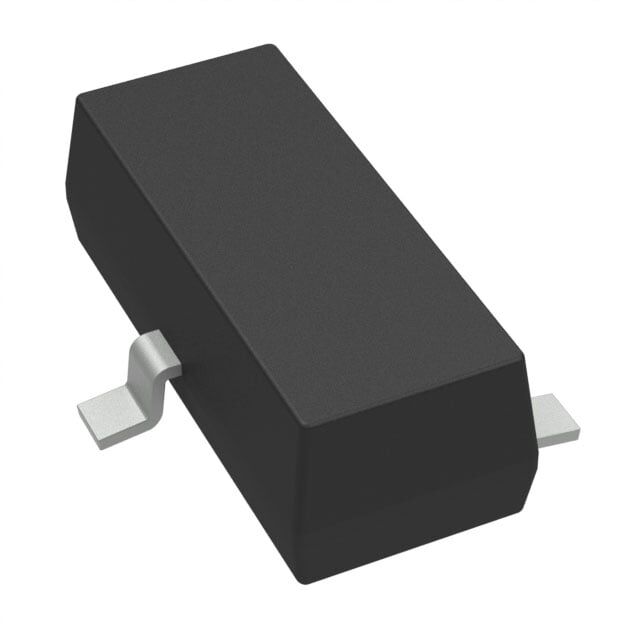

Texas Instruments LM4040A50IDBZT SOT-23-3 Entegre Devre
345,81 TL
36,18 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LM4040A50IDBZT
Stok Adedi
1
Fiyat
6,44 USD + KDV
LM4040A50IDBZT, 5V sabit çıkışlı shunt tip voltaj referansı entegresidir. ±0.1% tolerans ve 100ppm/°C sıcaklık katsayısı ile -40°C ile 85°C aralığında çalışır. SOT-23-3 (TO-236-3/SC-59 uyumlu) SMD kılıftadır.
LM4040A50IDBZT IC VREF SHUNT 0.1% SOT23-3
| Ürün Kodu | LM4040A50IDBZT |
| Current - Cathode | 95 µA |
| Current - Output | 15 mA |
| Current - Supply | - |
| Mounting Type | Surface Mount |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | 80µVrms |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Type | Fixed |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Part Status | Active |
| Reference Type | Shunt |
| Supplier Device Package | SOT-23-3 |
| Temperature Coefficient | 100ppm/°C |
| Tolerance | ±0.1% |
| Voltage - Input | - |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
Bu ürüne ilk yorumu siz yapın!
