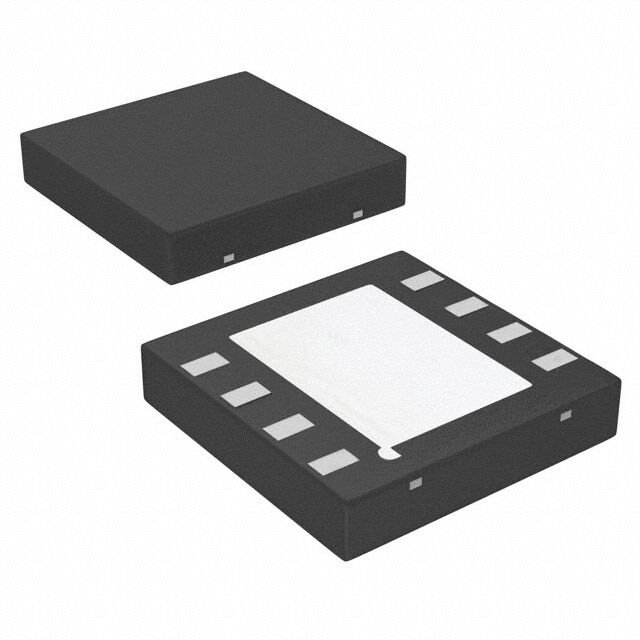

Texas Instruments LM2940LD-5.0/NOPB 8-WSON Entegre Devre
189,96 TL
19,87 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LM2940LD-5.0/NOPB
Stok Adedi
1
Fiyat
3,55 USD + KDV
LM2940LD-5.0/NOPB, 26V’a kadar girişten sabit 5V çıkış veren 1A lineer LDO regülatör entegresidir. 8-WSON (4x4) SMD pakettedir ve -40°C ile 125°C aralığında çalışır. Aşırı akım, aşırı sıcaklık, ters polarite ve kısa devre korumaları bulunur.
LM2940LD-5.0/NOPB IC REG LINEAR 5V 1A 8WSON
| Ürün Kodu | LM2940LD-5.0/NOPB |
| Control Features | - |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | 15 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 8-WDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| PSRR | 64dB (120Hz) |
| Supplier Device Package | 8-WSON (4x4) |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 1V @ 1A |
LM2940LD-5.0/NOPB Datasheet dosyasına ulaşmak için tıklayınız.
