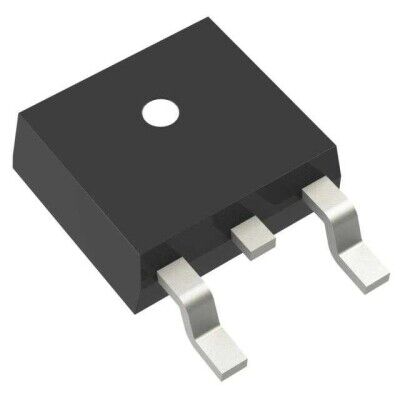

Texas Instruments LM1117IDTX-ADJ/NOPB TO-252-3 Entegre Devre
104,91 TL
10,98 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LM1117IDTX-ADJ/NOPB
Stok Adedi
1
Fiyat
1,95 USD + KDV
LM1117IDTX-ADJ/NOPB, ayarlanabilir pozitif lineer voltaj regülatörü entegresidir. 800 mA çıkış akımı destekler, giriş gerilimi 15 V’a kadar ve çıkış aralığı 1.25 V ile 13.8 V arasındadır. TO-252-3 (DPAK) SMD pakettedir ve aşırı akım ile aşırı sıcaklık koruması içerir.
LM1117IDTX-ADJ/NOPB IC REG LIN POS ADJ 800MA TO252-3
| Ürün Kodu | LM1117IDTX-ADJ/NOPB |
| Control Features | - |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | 10 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 75dB (120Hz) |
| Supplier Device Package | TO-252-3 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Max) | 13.8V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage Dropout (Max) | 1.2V @ 800mA |
LM1117IDTX-ADJ/NOPB Datasheet dosyasına ulaşmak için tıklayınız.
