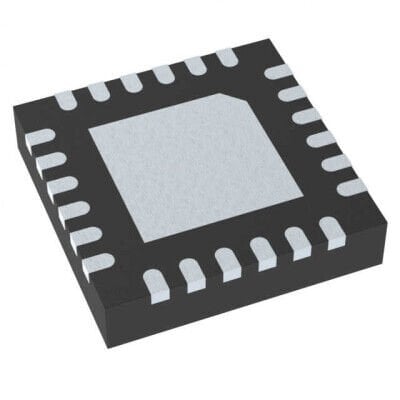

Texas Instruments DRV8256PRGER 48V 5A Motor Sürücü Entegre Devre
DRV8256PRGER
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
Texas Instruments DRV8256PRGER 48V 5A Motor Sürücü Entegre Devre Hakkında
DRV8256PRGER, 3.3V–48V yük gerilimi aralığında çalışan, NMOS tabanlı entegre motor sürücüdür. Fırçalı DC motorlar ve bipolar step motor uygulamaları için uygundur; kontrol arayüzü On/Off ve PWM’dir. 24-VQFN (4x4) SMD pakette sunulur ve çalışma sıcaklığı -40°C ile 125°C arasındadır.
DRV8256PRGER 48V, 8A H-BRIDGE MOTOR DRIVERS W
| Ürün Kodu | DRV8256PRGER |
| Applications | DC Motors, Printer |
| Current - Output | 5A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | On/Off, PWM |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (2) |
| Package / Case | 24-VFQFN Exposed Pad |
| Part Status | Active |
| Step Resolution | - |
| Supplier Device Package | 24-VQFN (4x4) |
| Technology | NMOS |
| Voltage - Load | 3.3V ~ 48V |
| Voltage - Supply | 4.5V ~ 48V |
DRV8256PRGER Datasheet dosyasına ulaşmak için tıklayınız.
