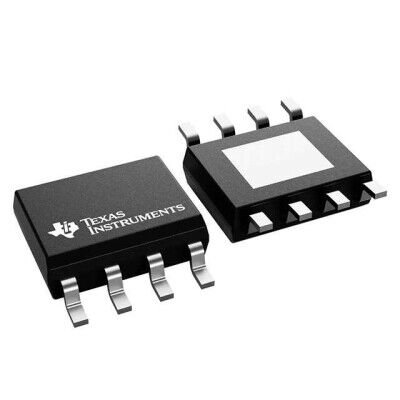

Texas Instruments DRV8231DDAR Motor Sürücü 8-SO PowerPad Entegre Devre
119,64 TL
12,52 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
DRV8231DDAR
Stok Adedi
1
Fiyat
2,26 USD + KDV
Texas Instruments DRV8231DDAR, PWM arayüzlü NMOS tabanlı, kontrol ve güç katı entegre motor sürücü entegresidir. 4.5V-33V besleme aralığında çalışır ve 3.7A çıkış akımı sunar. 8-PowerSOIC (8-SO PowerPad) SMD kılıftadır; bipolar step motor ve fırçalı DC motor uygulamalarında kullanılabilir.
DRV8231DDAR 8-PowerSOIC (0.154", 3.90mm Width) kılıfta üretilmiştir. Bipolar Motor Driver NMOS PWM 8-SO PowerPad
| Ürün Kodu | DRV8231DDAR |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | PWM |
| Technology | NMOS |
| Step Resolution | - |
| Applications | Printer |
| Current - Output | 3.7A |
| Voltage - Supply | 4.5V ~ 33V |
| Voltage - Load | 4.5V ~ 33V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO PowerPad |
DRV8231DDAR Datasheet dosyasına ulaşmak için tıklayınız.
