Görseller temsilidir, tam özellikler için datasheet'e bakınız.

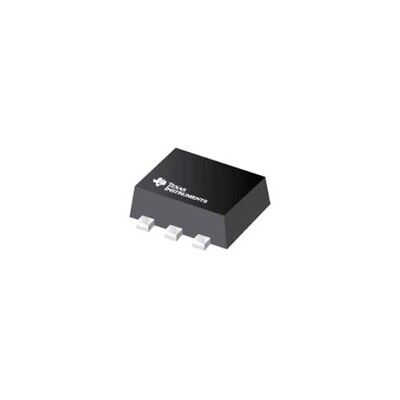

Texas Instruments DRV8210DRLR 12V 1.76A Motor Sürücü Entegre Devre
DRV8210DRLR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
Texas Instruments DRV8210DRLR 12V 1.76A Motor Sürücü Entegre Devre Hakkında
Texas Instruments DRV8210DRLR, fırçalı DC motor uygulamaları için tam entegre kontrol ve güç katı içeren motor sürücü entegresidir. 1.65V–11V besleme aralığında çalışır ve 1.76A çıkış akımı sağlar; PWM arayüzünü destekler. SOT-563 (SOT-666) SMD pakettedir ve -40°C ile 125°C çalışma sıcaklığı aralığına sahiptir.
DRV8210DRLR 12-V, 1.76-A BRUSHED DC MOTOR DR
| Ürün Kodu | DRV8210DRLR |
| Applications | Brushed DC, Camera |
| Current - Output | 1.76A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | PWM |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (2) |
| Package / Case | SOT-563, SOT-666 |
| Part Status | Active |
| Step Resolution | - |
| Supplier Device Package | SOT-563 |
| Technology | NMOS |
| Voltage - Load | 1.65V ~ 11V |
| Voltage - Supply | 1.65V ~ 11V |
DRV8210DRLR Datasheet dosyasına ulaşmak için tıklayınız.
