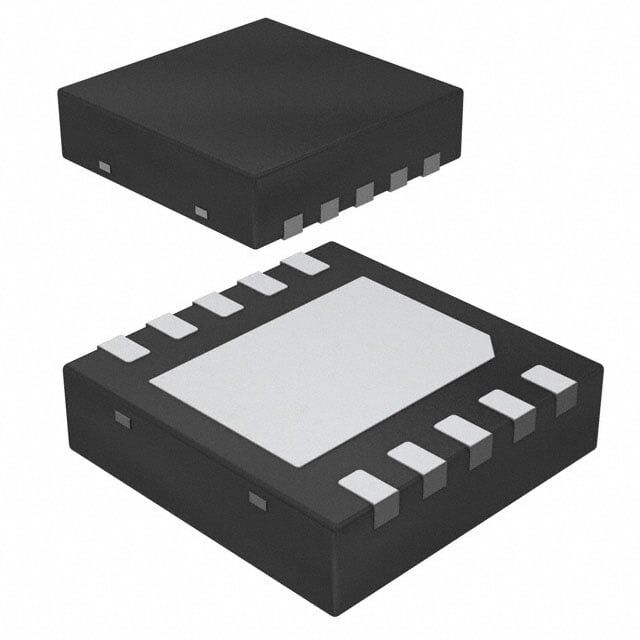

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
Texas Instruments DRV10866DSCR BLDC Fan Motor Sürücü Entegre Devre
DRV10866DSCR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
Texas Instruments DRV10866DSCR BLDC Fan Motor Sürücü Entegre Devre Hakkında
Texas Instruments DRV10866DSCR, BLDC fan motor uygulamaları için tam entegre kontrol ve güç katı içeren motor sürücü entegresidir. 1.65V-5.5V besleme aralığında çalışır, PWM arayüzünü destekler ve 800mA çıkış akımı sunar. 10-WSON (3x3) SMD pakettedir ve çalışma sıcaklığı -40°C ile 125°C (TJ) arasındadır.
DRV10866DSCR IC MOTOR DRVR 1.65V-5.5V 10WSON
| Ürün Kodu | DRV10866DSCR |
| Applications | Fan Motor Driver |
| Current - Output | 800mA |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | PWM |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Motor Type - Stepper | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Package / Case | 10-WFDFN Exposed Pad |
| Part Status | Active |
| Step Resolution | - |
| Supplier Device Package | 10-WSON (3x3) |
| Technology | Power MOSFET |
| Voltage - Load | 1.65V ~ 5.5V |
| Voltage - Supply | 1.65V ~ 5.5V |
DRV10866DSCR Datasheet dosyasına ulaşmak için tıklayınız.
