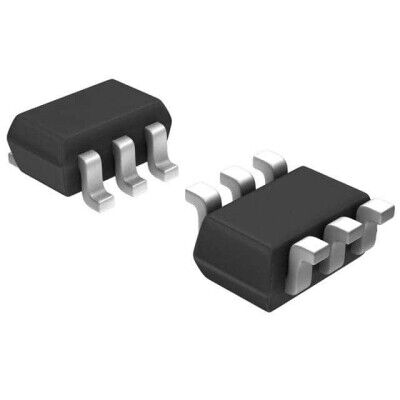

SIP32411DR-T1-GE3 SC-70-6 (SOT-363) Entegre Devre
57,61 TL
6,03 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
SIP32411DR-T1-GE3
Stok Adedi
1
Fiyat
1,08 USD + KDV
Vishay Siliconix SIP32411DR-T1-GE3, 1.1V–5.5V aralığında çalışan, 2A yüksek taraf (high-side) N-kanal güç anahtarı/driver entegresidir. SC-70-6 (SOT-363 / 6-TSSOP, SC-88) SMD kılıftadır; load discharge ve slew rate kontrollü anahtarlama özellikleri bulunur. Tipik Rds(on) değeri 101 mOhm olup ters akım koruması içerir.
SIP32411DR-T1-GE3 6-TSSOP, SC-88, SOT-363 kılıfta üretilmiştir. Power Switch/Driver 1:1 N-Channel 2A SC-70-6
| Ürün Kodu | SIP32411DR-T1-GE3 |
| Packaging | Cut Tape (CT) |
| Features | Load Discharge, Slew Rate Controlled |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | On/Off |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 101mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 1.1V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | SC-70-6 |
| Fault Protection | Reverse Current |
SIP32411DR-T1-GE3 Datasheet dosyasına ulaşmak için tıklayınız.
