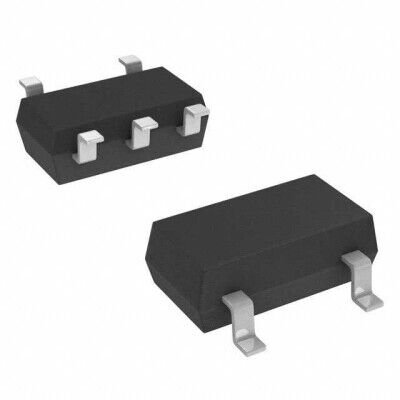

RT9078-33GJ5 TSOT-23-5 3.3V 300mA LDO Entegre Devre
17,98 TL
1,88 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
RT9078-33GJ5
Stok Adedi
1
Fiyat
0,34 USD + KDV
RT9078-33GJ5, Richtek USA Inc. üretimi sabit 3.3V çıkışlı, pozitif LDO lineer regülatör entegresidir. 5.5V maksimum giriş gerilimi ile 300mA çıkış akımı sağlar ve TSOT-23-5 (SOT-23-5 Thin) SMD kılıftadır. Enable kontrol pini, aşırı akım ve aşırı sıcaklık korumaları bulunur.
RT9078-33GJ5 SOT-23-5 Thin, TSOT-23-5 kılıfta üretilmiştir. Linear Voltage Regulator IC Positive Fixed 1 Output 300mA TSOT-23-5
| Ürün Kodu | RT9078-33GJ5 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.22V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 4 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
RT9078-33GJ5 Datasheet dosyasına ulaşmak için tıklayınız.
