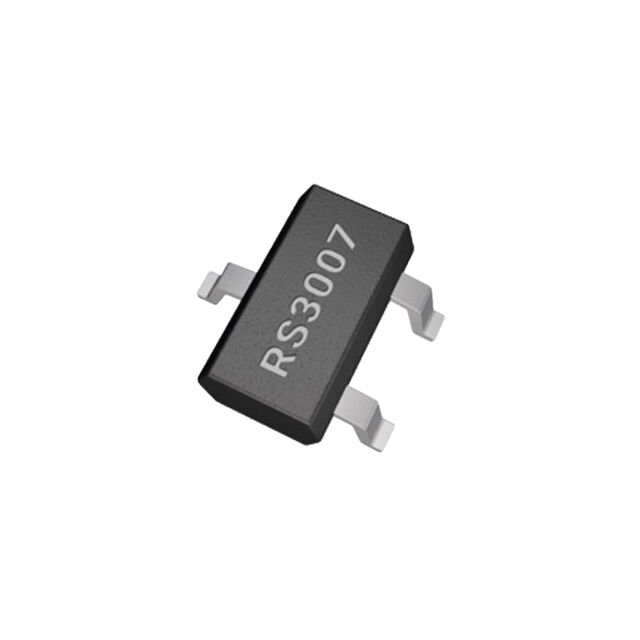

RS3007-5.0AYF3 Runic 5V 300mA SOT-23-3 Entegre Devre
30,46 TL
3,19 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
RS3007-5.0AYF3
Stok Adedi
1
Fiyat
0,57 USD + KDV
RS3007-5.0AYF3, Runic Technology üretimi 5V sabit çıkışlı lineer regülatördür. SOT-23-3 kılıfta, 300mA çıkış akımı ve 45V maksimum giriş gerilimi sunar. Enable kontrol pini ile aç/kapa yapılabilir; aşırı akım ve aşırı sıcaklık korumaları bulunur.
RS3007-5.0AYF3 IC REG LINEAR 5.0V 300MA SOT23-3
| Ürün Kodu | RS3007-5.0AYF3 |
| Control Features | Enable |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 4 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 72dB ~ 60dB (217Hz ~ 10kHz) |
| Supplier Device Package | SOT-23-3 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 0.4V @ 100mA |
