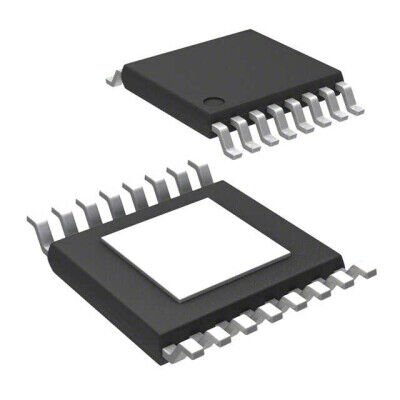

MP6508GF-Z 16-TSSOP-EP Motor Sürücü Entegre Devre
164,19 TL
17,18 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Stok Kodu
MP6508GF-Z
Stok Adedi
1
Fiyat
3,09 USD + KDV
MP6508GF-Z, MPS üretimi 16-TSSOP-EP (Exposed Pad) kılıfta, Power MOSFET teknolojili tam entegre motor sürücü entegresidir. PWM arayüzlü, 4 adet half-bridge çıkış yapısına sahiptir ve bipolar step motor ile fırçalı DC motor uygulamalarında kullanılabilir. 2.7V-18V besleme aralığında çalışır, 1.2A çıkış akımı ve -40°C ile 125°C çalışma sıcaklığı aralığı sunar.
MP6508GF-Z 16-TSSOP (0.173", 4.40mm Width) Exposed Pad kılıfta üretilmiştir. Bipolar Motor Driver Power MOSFET PWM 16-TSSOP-EP
| Ürün Kodu | MP6508GF-Z |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | PWM |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1.2A |
| Voltage - Supply | 2.7V ~ 18V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP |
