Görseller temsilidir, tam özellikler için datasheet'e bakınız.

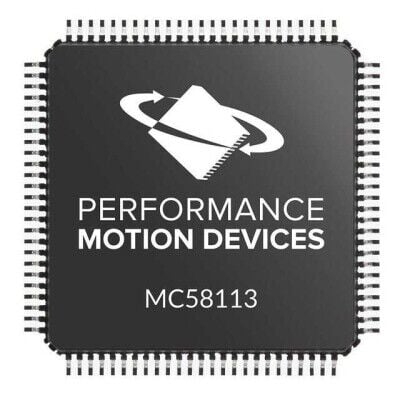

MC58113 100-LQFP Entegre Devre
MC58113
- Üretici
- Performance Motion Devices, Inc.
- Kategori
- Kılıf / Paket
- —
MC58113 100-LQFP Entegre Devre Hakkında
MC58113, 100-LQFP (100-TQFP 14x14) kılıfta CMOS motor kontrol entegresidir. CAN, RS-232, RS-485 ve SPI arayüzlerini destekler; bipolar step motorlarda 1/256 mikrostep çözünürlüğe kadar çalışır. 2.97V–3.63V besleme aralığı ve -40°C ile 85°C çalışma sıcaklığına uygundur.
MC58113 100-LQFP kılıfta üretilmiştir. Bipolar Motor Driver CMOS CAN, RS-232, RS-485, SPI 100-TQFP (14x14)
| Ürün Kodu | MC58113 |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushless DC (BLDC), Brushed DC, PMSM, Servo, Stepper |
| Function | Controller - Commutation, Direction Management |
| Output Configuration | High Side, Low Side |
| Interface | CAN, RS-232, RS-485, SPI |
| Technology | CMOS |
| Step Resolution | 1 ~ 1/256 |
| Applications | Automation Control, General Purpose, Industrial, Medical, Servo |
| Current - Output | 4mA |
| Voltage - Supply | 2.97V ~ 3.63V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-TQFP (14x14) |
MC58113 Datasheet dosyasına ulaşmak için tıklayınız.
