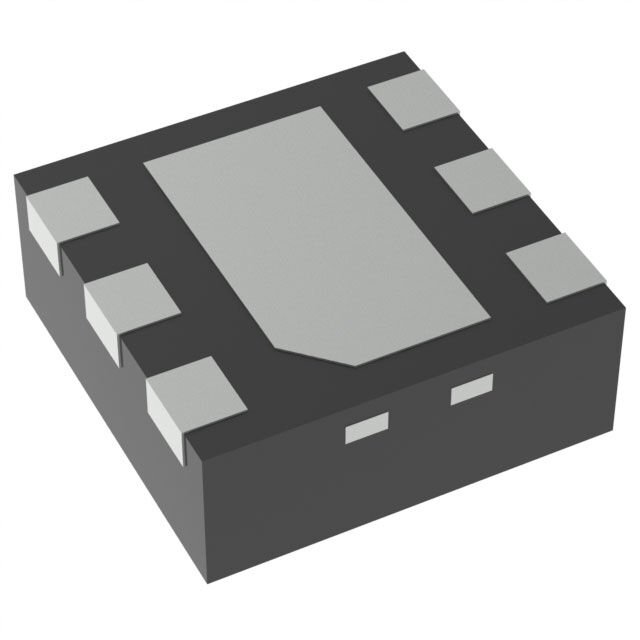

LP5912Q1.8DRVRQ1 Texas Instruments 1.8V 500mA 6-WSON Entegre Devre
108,49 TL
11,35 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LP5912Q1.8DRVRQ1
Stok Adedi
1
Fiyat
2,05 USD + KDV
Texas Instruments LP5912Q1.8DRVRQ1, 1.8V sabit çıkışlı 500mA lineer regülatör entegresidir. Enable, Power Good ve Soft Start kontrol özelliklerine sahiptir; 6.5V maksimum giriş gerilimi ile çalışır. 6-WSON (2x2) SMD pakette, aşırı sıcaklık, ters polarite ve kısa devre korumaları içerir.
LP5912Q1.8DRVRQ1 IC REG LINEAR 1.8V 500MA 6WSON
| Ürün Kodu | LP5912Q1.8DRVRQ1 |
| Control Features | Enable, Power Good, Soft Start |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 600 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 6-WDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| PSRR | 80dB ~ 40db (100Hz ~ 100kHz) |
| Supplier Device Package | 6-WSON (2x2) |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage Dropout (Max) | 0.25V @ 500mA |
LP5912Q1.8DRVRQ1 Datasheet dosyasına ulaşmak için tıklayınız.
