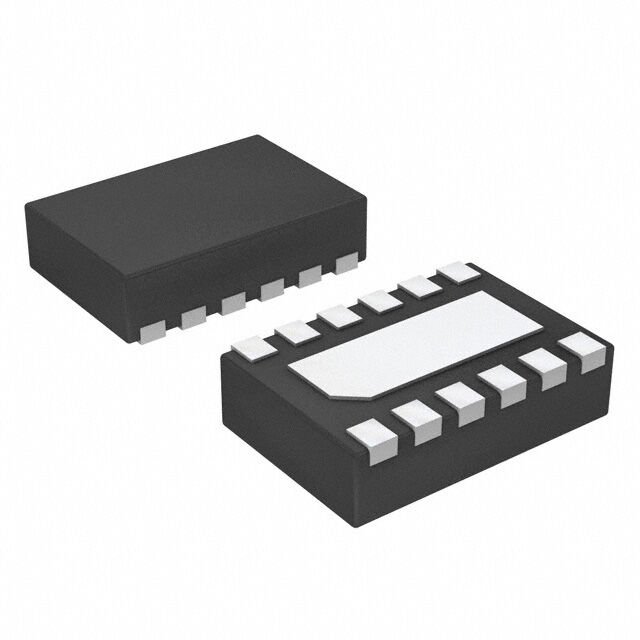

LM27762DSSR Texas Instruments 12-WSON (3x2) Entegre Devre
LM27762DSSR
- Üretici
- Texas Instruments
- Kategori
- Kılıf / Paket
- —
LM27762DSSR Texas Instruments 12-WSON (3x2) Entegre Devre Hakkında
LM27762DSSR, Texas Instruments üretimi ayarlanabilir çift çıkışlı (pozitif ve negatif) charge pump regülatör entegresidir. 2.7V–5.5V giriş aralığında çalışır, 250mA çıkış akımı ve 1.7MHz–2.3MHz anahtarlama frekansı sunar. 12-WSON (3x2) SMD pakettedir ve çalışma sıcaklığı aralığı -40°C ile 85°C’dir.
LM27762DSSR IC REG CHARGE PUMP ADJ DL 12WSON
| Ürün Kodu | LM27762DSSR |
| Current - Output | 250mA |
| Frequency - Switching | 1.7MHz ~ 2.3MHz |
| Function | Step-Up/Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 - Dual |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive and Negative (Dual Rail) |
| Output Type | Adjustable |
| Package / Case | 12-WFDFN Exposed Pad |
| Part Status | Active |
| Supplier Device Package | 12-WSON (3x2) |
| Synchronous Rectifier | No |
| Topology | Charge Pump |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 2.7V |
| Voltage - Output (Max) | -1.5V, 5V |
| Voltage - Output (Min/Fixed) | -5V, 1.5V |
LM27762DSSR Datasheet dosyasına ulaşmak için tıklayınız.
