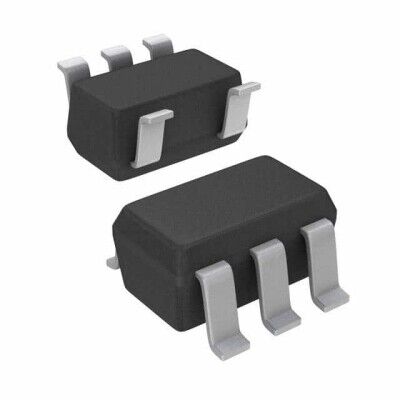

TLV3601DBVR Texas Instruments SC-74A SOT-753 Entegre Devre
365,38 TL
38,22 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TLV3601DBVR
Stok Adedi
0
Fiyat
6,80 USD + KDV
TLV3601DBVR, Texas Instruments üretimi genel amaçlı CMOS karşılaştırıcıdır ve push-pull, rail-to-rail çıkış yapısına sahiptir. 2.4V–5.5V besleme aralığında çalışır, maksimum 3.5ns yayılma gecikmesi sunar ve -40°C ile 125°C arasında kullanılabilir. SC-74A (SOT-753) kılıftadır ve SOT-23-5 cihaz paketine sahiptir.
TLV3601DBVR SC-74A, SOT-753 kılıfta üretilmiştir. Comparator General Purpose CMOS, Push-Pull, Rail-to-Rail SOT-23-5
| Ürün Kodu | TLV3601DBVR |
| Packaging | Cut Tape (CT) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | CMOS, Push-Pull, Rail-to-Rail |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Single/Dual (±) | 2.4V ~ 5.5V |
| Supplier Device Package | SOT-23-5 |
| Propagation Delay (Max) | 3.5ns |
| Current - Quiescent (Max) | 7mA |
| Voltage - Input Offset (Max) | 5mV @ 5V |
| Current - Input Bias (Max) | 5µA @ 5V |
| Current - Output (Typ) | 30mA @ 5V |
| CMRR, PSRR (Typ) | 80dB CMRR, 80dB PSRR |
| Hysteresis | 5mV |
TLV3601DBVR Datasheet dosyasına ulaşmak için tıklayınız.
