onsemi MC79M05BDTRKG DPAK -5V 500mA Regülatör Entegre Devre
54,11 TL
5,66 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
MC79M05BDTRKG
Stok Adedi
1
Fiyat
1,00 USD + KDV

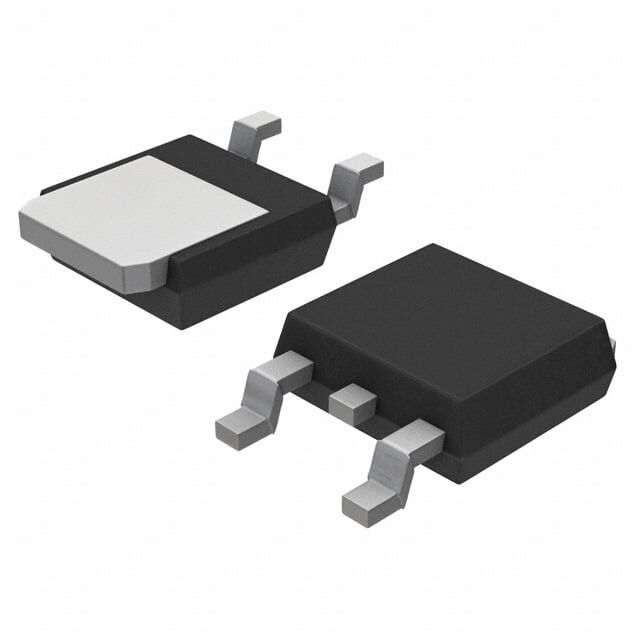

MC79M05BDTRKG, onsemi üretimi sabit -5V çıkışlı, 500mA lineer negatif voltaj regülatörüdür. DPAK (TO-252-3) SMD kılıfta sunulur ve -35V maksimum giriş gerilimini destekler. Aşırı akım ve aşırı sıcaklık korumasına sahiptir, çalışma sıcaklığı aralığı -40°C ile 125°C arasındadır.
MC79M05BDTRKG IC REG LINEAR -5V 500MA DPAK
| Ürün Kodu | MC79M05BDTRKG |
| Control Features | - |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Negative |
| Output Type | Fixed |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 66dB (120Hz) |
| Supplier Device Package | DPAK |
| Voltage - Input (Max) | -35V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | -5V |
| Voltage Dropout (Max) | 1.1V @ 500mA (Typ) |
MC79M05BDTRKG Datasheet dosyasına ulaşmak için tıklayınız.
