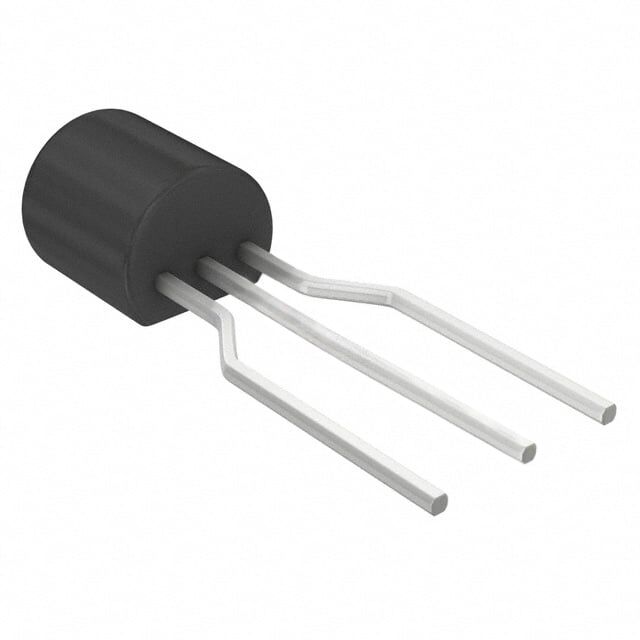

onsemi MC78L12ACPRPG TO-92 12V 100mA Regülatör Entegre Devre
27,47 TL
2,87 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
MC78L12ACPRPG
Stok Adedi
1
Fiyat
0,51 USD + KDV
MC78L12ACPRPG, onsemi üretimi sabit 12V pozitif lineer voltaj regülatörüdür ve 100mA çıkış akımı sağlar. TO-92 (TO-226) kılıfta, through-hole montaja uygundur; maksimum 35V giriş gerilimi ile çalışır. Aşırı sıcaklık ve kısa devre koruması içerir, çalışma sıcaklığı aralığı 0°C ile 125°C arasındadır.
MC78L12ACPRPG IC REG LINEAR 12V 100MA TO92-3
| Ürün Kodu | MC78L12ACPRPG |
| Control Features | - |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 6.5 mA |
| Current - Supply (Max) | - |
| Mounting Type | Through Hole |
| Number of Regulators | 1 |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-226-3, TO-92-3 Long Body (Formed Leads) |
| Part Status | Active |
| Protection Features | Over Temperature, Short Circuit |
| PSRR | 42dB (120Hz) |
| Supplier Device Package | TO-92 (TO-226) |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage Dropout (Max) | - |
MC78L12ACPRPG Datasheet dosyasına ulaşmak için tıklayınız.
