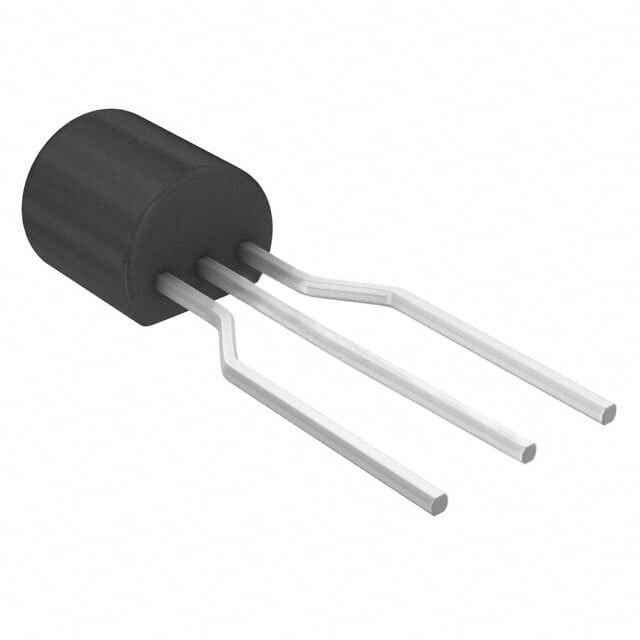

onsemi MC78L05ACPRAG TO-92-3 5V 100mA Regülatör Entegre Devre
23,40 TL
2,45 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
MC78L05ACPRAG
Stok Adedi
1
Fiyat
0,43 USD + KDV
MC78L05ACPRAG, onsemi üretimi 5V sabit çıkışlı pozitif lineer voltaj regülatörüdür. TO-92-3 (TO-226) kılıfta, through-hole montaja uygundur ve 100mA çıkış akımı sağlar. 30V maksimum giriş gerilimi destekler; aşırı sıcaklık ve kısa devre koruması içerir.
MC78L05ACPRAG IC REG LINEAR 5V 100MA TO92-3
| Ürün Kodu | MC78L05ACPRAG |
| Control Features | - |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| Mounting Type | Through Hole |
| Number of Regulators | 1 |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-226-3, TO-92-3 Long Body (Formed Leads) |
| Part Status | Active |
| Protection Features | Over Temperature, Short Circuit |
| PSRR | 49dB (120Hz) |
| Supplier Device Package | TO-92 (TO-226) |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | - |
MC78L05ACPRAG Datasheet dosyasına ulaşmak için tıklayınız.
