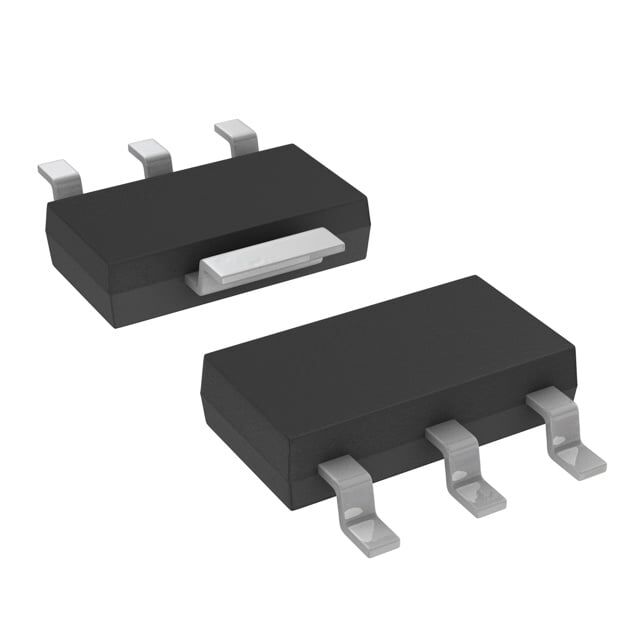

Microchip MCP1826S-5002E/DB SOT-223-3 5V 1A Entegre Devre
73,24 TL
7,66 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
MCP1826S-5002E/DB
Stok Adedi
1
Fiyat
1,36 USD + KDV
MCP1826S-5002E/DB, Microchip üretimi 5V sabit çıkışlı, 1A akım verebilen lineer voltaj regülatör entegresidir. SOT-223-3 SMD pakettedir; 6V maksimum giriş gerilimi, 0.4V @ 1A dropout ve 220 µA tipik boşta akım değerine sahiptir. Aşırı sıcaklık, kısa devre ve UVLO koruma özellikleri bulunur.
MCP1826S-5002E/DB IC REG LINEAR 5V 1A SOT223-3
| Ürün Kodu | MCP1826S-5002E/DB |
| Control Features | - |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-261-4, TO-261AA |
| Part Status | Active |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| PSRR | 60dB (100Hz) |
| Supplier Device Package | SOT-223-3 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 0.4V @ 1A |
MCP1826S-5002E/DB Datasheet dosyasına ulaşmak için tıklayınız.
