Görseller temsilidir, tam özellikler için datasheet'e bakınız.

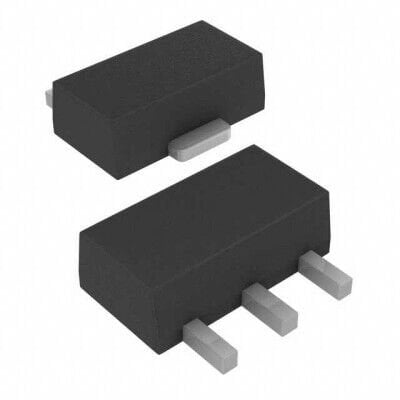

Microchip LR8N8-G TO-243AA (SOT-89) Entegre Devre Hakkında
LR8N8-G, Microchip markalı pozitif ayarlanabilir lineer voltaj regülatörü entegresidir. 450V maksimum giriş, 1.2V–438V arası ayarlanabilir çıkış ve 10mA çıkış akımı desteği sunar. TO-243AA (SOT-89) SMD pakettedir, aşırı akım ve aşırı sıcaklık korumaları bulunur.
LR8N8-G IC REG LIN POS ADJ 10MA TO243AA
| Ürün Kodu | LR8N8-G |
| Control Features | - |
| Current - Output | 10mA |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | TO-243AA |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 60dB (120Hz) |
| Supplier Device Package | TO-243AA (SOT-89) |
| Voltage - Input (Max) | 450V |
| Voltage - Output (Max) | 438V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage Dropout (Max) | - |
LR8N8-G Datasheet dosyasına ulaşmak için tıklayınız.
