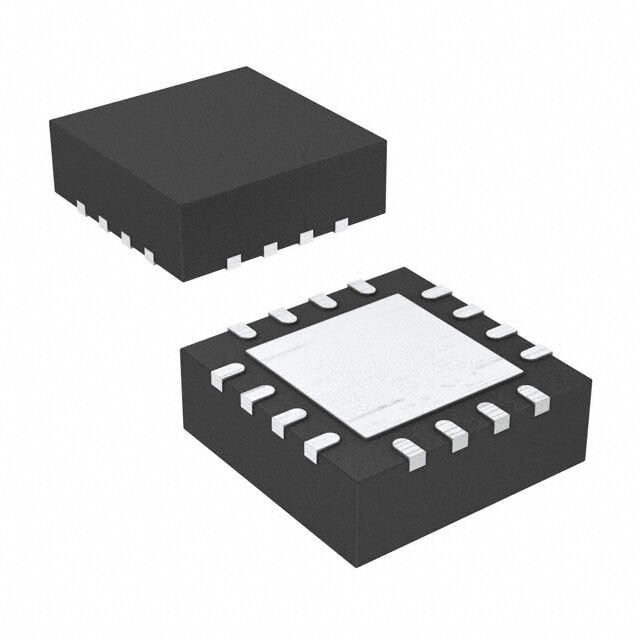

Microchip HV9150K6-G Boost Regülatör Kontrolcüsü Entegre Devre
90,37 TL
9,45 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
HV9150K6-G
Stok Adedi
1
Fiyat
1,71 USD + KDV
HV9150K6-G, boost (step-up) topolojili, 1 çıkışlı regülatör kontrolcü entegresidir. 2.7V–4.5V besleme aralığında çalışır ve 40kHz–400kHz anahtarlama frekansını destekler. 16-VFQFN (3x3) yüzey montaj pakettedir ve -25°C ile 125°C (TJ) çalışma sıcaklığı aralığına sahiptir.
HV9150K6-G IC REG CTRLR BOOST 16VQFN
| Ürün Kodu | HV9150K6-G |
| Clock Sync | No |
| Control Features | Enable, Frequency Control |
| Duty Cycle (Max) | 87.5% |
| Frequency - Switching | 40kHz ~ 400kHz |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Phases | 1 |
| Output Type | Transistor Driver |
| Package / Case | 16-VFQFN Exposed Pad |
| Part Status | Active |
| Serial Interfaces | - |
| Supplier Device Package | 16-QFN (3x3) |
| Synchronous Rectifier | No |
| Topology | Boost |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 4.5V |
HV9150K6-G Datasheet dosyasına ulaşmak için tıklayınız.
