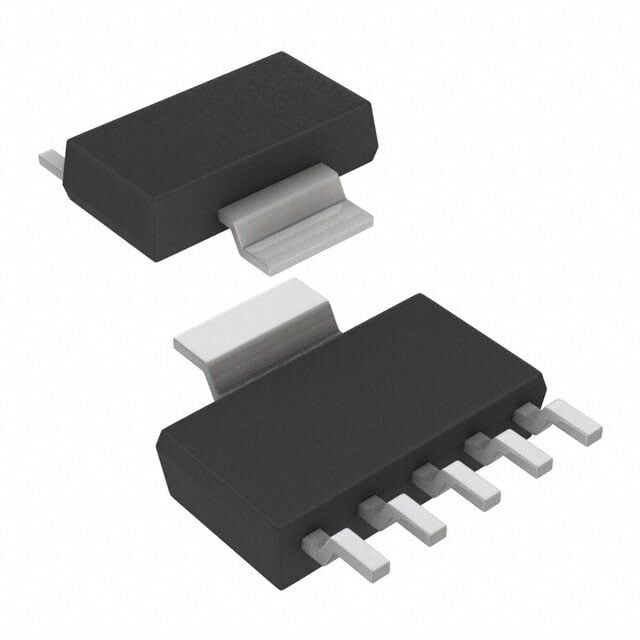

MCP1825T-3302E/DC 3.3V 500mA SOT-223-5 Entegre Devre
53,66 TL
5,61 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
MCP1825T-3302E/DC
Stok Adedi
1
Fiyat
1,00 USD + KDV
Microchip MCP1825T-3302E/DC, 3.3V sabit çıkışlı 500mA lineer regülatör entegresidir. Enable ve Power Good kontrol özelliklerine sahiptir, 6V maksimum giriş gerilimi ile çalışır. SOT-223-5 paketinde, aşırı sıcaklık, kısa devre ve UVLO korumaları bulunur.
MCP1825T-3302E/DC IC REG LIN 3.3V 500MA SOT223-5
| Ürün Kodu | MCP1825T-3302E/DC |
| Control Features | Enable, Power Good |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | SOT-223-6 |
| Part Status | Active |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| PSRR | 60dB (100Hz) |
| Supplier Device Package | SOT-223-5 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.35V @ 500mA |
MCP1825T-3302E/DC Datasheet dosyasına ulaşmak için tıklayınız.
