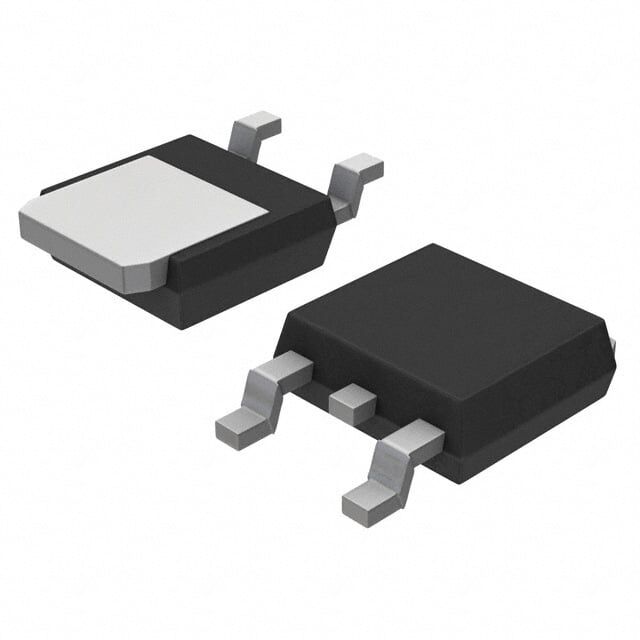

MC7805BDTG onsemi DPAK (TO-252-3) 5V 1A Entegre Devre
22,25 TL
2,33 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
MC7805BDTG
Stok Adedi
1
Fiyat
0,41 USD + KDV
MC7805BDTG, onsemi üretimi sabit 5V çıkış veren 1A lineer voltaj regülatör entegresidir. DPAK (TO-252-3) SMD kılıftadır, maksimum 35V giriş gerilimini destekler ve -40°C ile 125°C arasında çalışır. Aşırı sıcaklık ve kısa devre koruması bulunur.
MC7805BDTG IC REG LINEAR 5V 1A DPAK
| Ürün Kodu | MC7805BDTG |
| Control Features | - |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 8 mA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Part Status | Active |
| Protection Features | Over Temperature, Short Circuit |
| PSRR | 68dB (120Hz) |
| Supplier Device Package | DPAK |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 2V @ 1A (Typ) |
MC7805BDTG Datasheet dosyasına ulaşmak için tıklayınız.
Bu ürüne ilk yorumu siz yapın!
