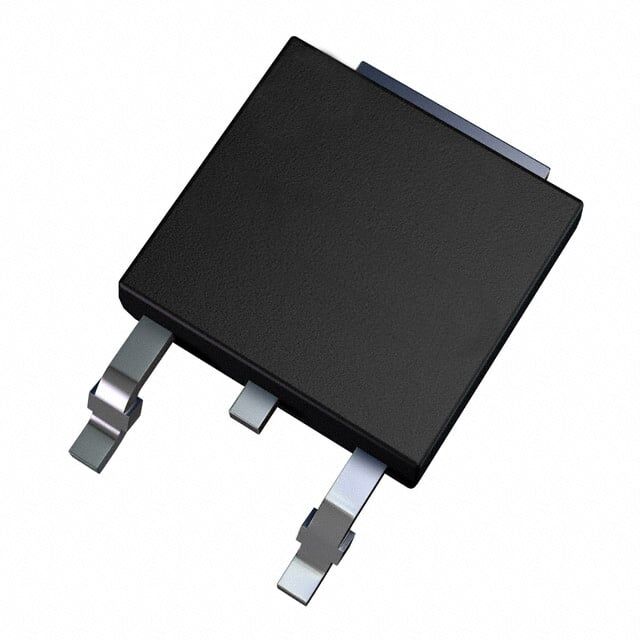

LF33CDT-TR 3.3V 500mA DPAK Entegre Devre
91,64 TL
9,59 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LF33CDT-TR
Stok Adedi
1
Fiyat
1,71 USD + KDV
STMicroelectronics LF33CDT-TR, 3.3V sabit çıkışlı lineer voltaj regülatörüdür ve 500mA çıkış akımı sağlar. DPAK (TO-252-3) SMD kılıftadır, maksimum 16V giriş gerilimi ile çalışır. Aşırı akım ve aşırı sıcaklık korumalarına sahiptir.
LF33CDT-TR IC REG LINEAR 3.3V 500MA DPAK
| Ürün Kodu | LF33CDT-TR |
| Control Features | - |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 1 mA |
| Current - Supply (Max) | 12 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 80dB ~ 65dB (120Hz ~ 65dB) |
| Supplier Device Package | DPAK |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.7V @ 500mA |
Bu ürüne ilk yorumu siz yapın!
