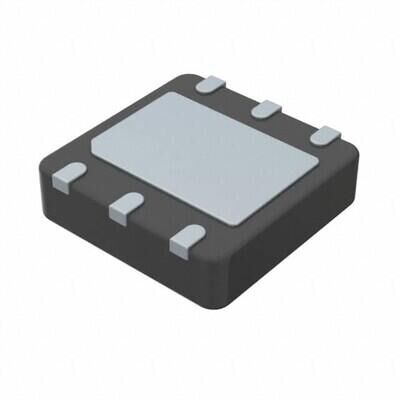

LD39050PU33R 3.3V 500mA 6-DFN (3x3) Entegre Devre
LD39050PU33R
- Üretici
- STMicroelectronics
- Kategori
- Kılıf / Paket
- —
LD39050PU33R 3.3V 500mA 6-DFN (3x3) Entegre Devre Hakkında
STMicroelectronics LD39050PU33R, 3.3V sabit çıkışlı 500mA lineer regülatördür (LDO). 6-DFN (3x3) SMD pakette, Enable ve Power Good özelliklerine sahiptir. Aşırı akım, aşırı sıcaklık ve kısa devre korumaları bulunur; giriş gerilimi maks. 5.5V.
LD39050PU33R IC REG LINEAR 3.3V 500MA 6DFN
| Ürün Kodu | LD39050PU33R |
| Control Features | Enable, Power Good |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | 200 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | 6-VDFN Exposed Pad |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| PSRR | 65dB ~ 62dB (1kHz ~ 10kHz) |
| Supplier Device Package | 6-DFN (3x3) |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.4V @ 500mA |
