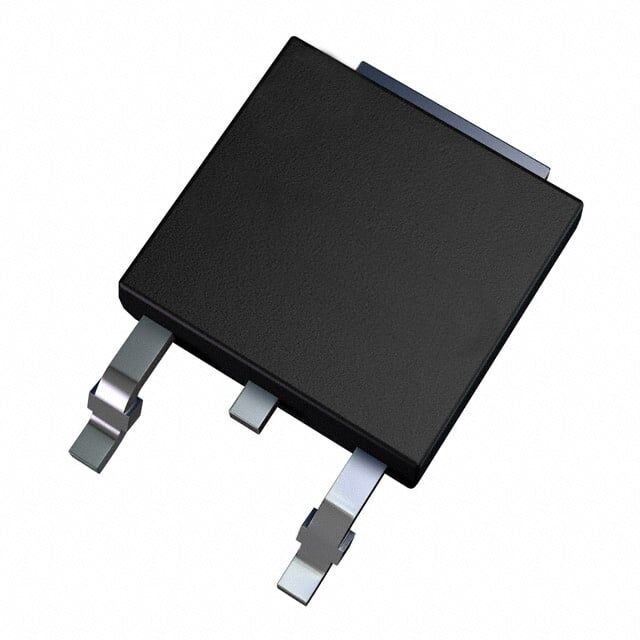

LD29080DT33R 3.3V 800mA DPAK (TO-252-3) Entegre Devre
113,41 TL
11,86 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LD29080DT33R
Stok Adedi
1
Fiyat
2,11 USD + KDV
STMicroelectronics LD29080DT33R, 3.3V sabit çıkışlı 800mA lineer voltaj regülatörüdür. DPAK (TO-252-3) SMD kılıfta, maksimum 13V giriş gerilimi ile çalışır ve -40°C ile 125°C aralığını destekler. Aşırı akım ve aşırı sıcaklık koruması bulunur.
LD29080DT33R IC REG LINEAR 3.3V 800MA DPAK
| Ürün Kodu | LD29080DT33R |
| Control Features | - |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 180 µA |
| Current - Supply (Max) | 35 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 67dB (120Hz) |
| Supplier Device Package | DPAK |
| Voltage - Input (Max) | 13V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 0.7V @ 800mA |
