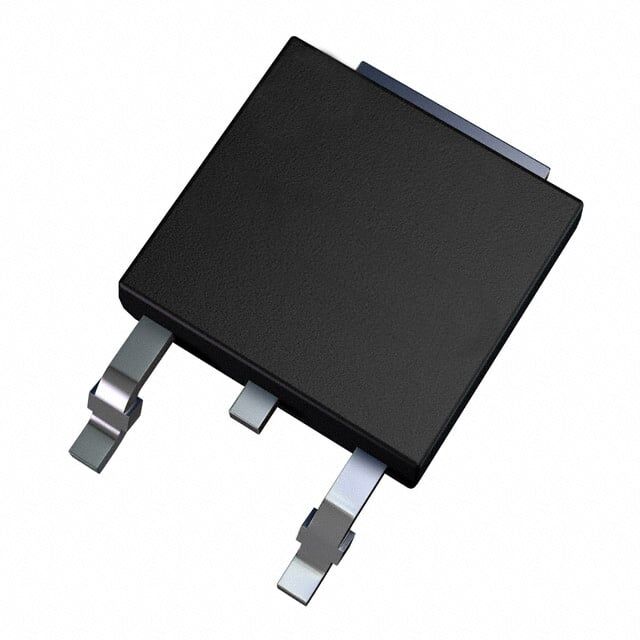

LD1117DT33TR 3.3V 800mA DPAK Entegre Devre
LD1117DT33TR
- Üretici
- STMicroelectronics
- Kategori
- Kılıf / Paket
- —
LD1117DT33TR 3.3V 800mA DPAK Entegre Devre Hakkında
STMicroelectronics LD1117DT33TR, 3.3V sabit çıkışlı lineer voltaj regülatörüdür. 800mA çıkış akımı sağlar, maksimum 15V giriş ile çalışır ve DPAK (TO-252-3) SMD kılıftadır. Aşırı akım ve aşırı sıcaklık koruması içerir.
LD1117DT33TR IC REG LINEAR 3.3V 800MA DPAK
| Ürün Kodu | LD1117DT33TR |
| Control Features | - |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 75dB (120Hz) |
| Supplier Device Package | DPAK |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 1.2V @ 800mA |
