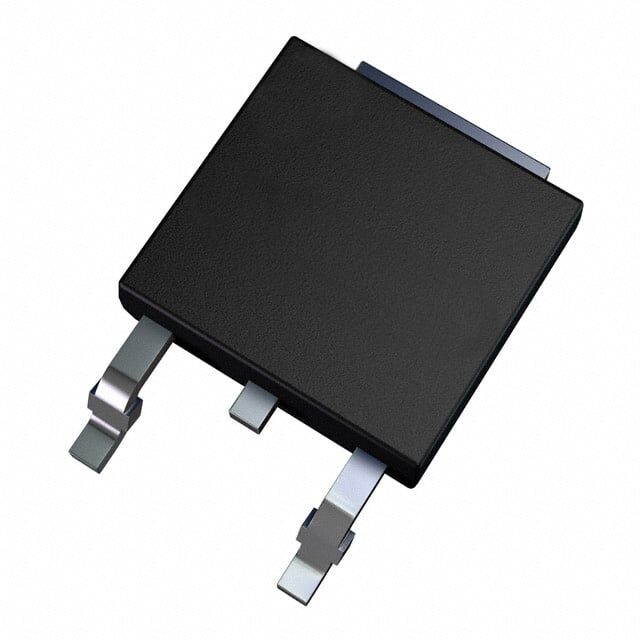

LD1117DT33CTR 3.3V 800mA DPAK Entegre Devre
32,16 TL
3,36 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LD1117DT33CTR
Stok Adedi
1
Fiyat
0,60 USD + KDV
STMicroelectronics LD1117DT33CTR, 3.3V sabit çıkışlı pozitif lineer regülatördür ve 800mA çıkış akımı sağlar. DPAK (TO-252-3) SMD kılıftadır, maksimum 15V giriş gerilimi ile çalışır. Aşırı akım ve aşırı sıcaklık koruması bulunur, çalışma sıcaklığı -40°C ile 125°C arasındadır.
LD1117DT33CTR IC REG LINEAR 3.3V 800MA DPAK
| Ürün Kodu | LD1117DT33CTR |
| Control Features | - |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 75dB (120Hz) |
| Supplier Device Package | DPAK |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage Dropout (Max) | 1.3V @ 800mA |
