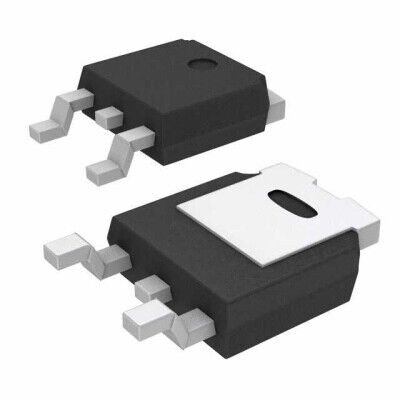

LD1086BDTTR DPAK 1.5A Ayarlanabilir LDO Entegre Devre
LD1086BDTTR
- Üretici
- STMicroelectronics
- Kategori
- Kılıf / Paket
- —
LD1086BDTTR DPAK 1.5A Ayarlanabilir LDO Entegre Devre Hakkında
STMicroelectronics LD1086BDTTR, pozitif ayarlanabilir lineer LDO regülatör entegresidir. 1.25V–28.5V çıkış aralığı ve 1.5A çıkış akımı sunar; maksimum giriş gerilimi 30V’tur. DPAK (TO-252-3) SMD kılıfta olup aşırı akım ve aşırı sıcaklık korumalarına sahiptir.
LD1086BDTTR IC REG LINEAR POS ADJ 1.5A DPAK
| Ürün Kodu | LD1086BDTTR |
| Control Features | - |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature |
| PSRR | 88dB (120Hz) |
| Supplier Device Package | DPAK |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Max) | 28.5V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage Dropout (Max) | 1.5V @ 1.5A |
