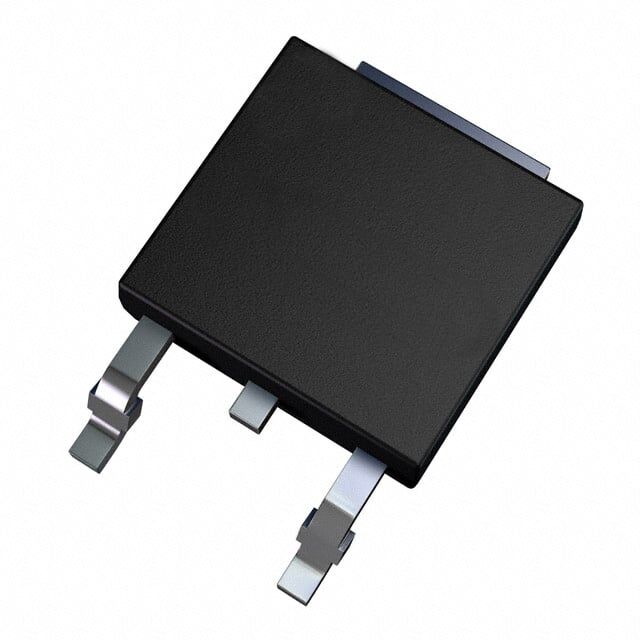

L78M12ABDT-TR 12V 500mA DPAK Entegre Devre
43,46 TL
4,55 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
L78M12ABDT-TR
Stok Adedi
1
Fiyat
0,81 USD + KDV
STMicroelectronics L78M12ABDT-TR, 12V sabit pozitif çıkışlı lineer voltaj regülatörüdür ve 500mA çıkış akımı sağlar. TO-252-3 (DPAK) SMD kılıfta, maksimum 35V giriş gerilimi ile çalışır. Aşırı akım, aşırı sıcaklık ve kısa devre korumaları içerir.
L78M12ABDT-TR IC REG LINEAR 12V 500MA DPAK
| Ürün Kodu | L78M12ABDT-TR |
| Control Features | - |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| PSRR | 55dB (120Hz) |
| Supplier Device Package | DPAK |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage Dropout (Max) | - |
L78M12ABDT-TR Datasheet dosyasına ulaşmak için tıklayınız.
