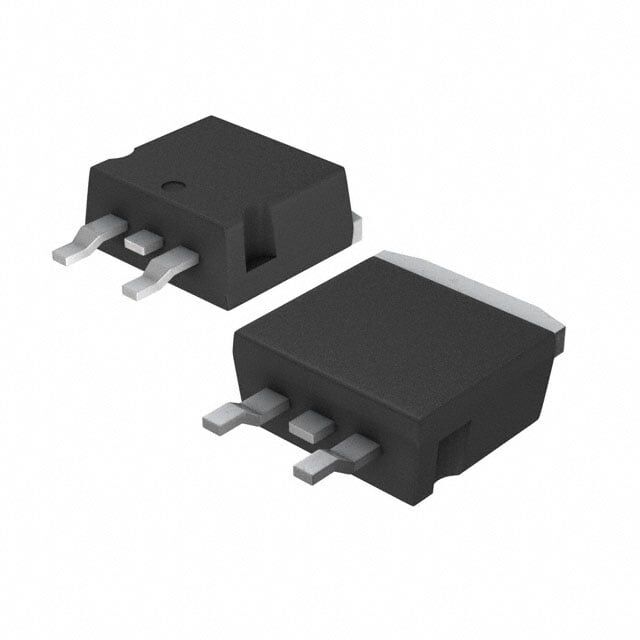

L4940D2T12-TR 12V 1.5A Lineer Regülatör D2PAK Entegre Devre
150,74 TL
15,77 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
L4940D2T12-TR
Stok Adedi
1
Fiyat
2,81 USD + KDV
STMicroelectronics L4940D2T12-TR, 17V maksimum girişten 12V sabit pozitif çıkış veren 1.5A lineer regülatördür. D2PAK (TO-263-3) SMD kılıfta sunulur ve 0.9V dropout (1.5A) değerine sahiptir. Aşırı sıcaklık, ters polarite ve kısa devre korumaları bulunur.
L4940D2T12-TR IC REG LINEAR 12V 1.5A D2PAK
| Ürün Kodu | L4940D2T12-TR |
| Control Features | - |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 8 mA |
| Current - Supply (Max) | 50 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 150°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Part Status | Active |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| PSRR | 61dB (120Hz) |
| Supplier Device Package | D2PAK |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage Dropout (Max) | 0.9V @ 1.5A |
