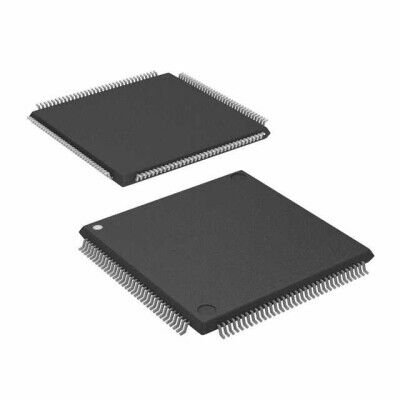

Intel EP2C8T144C8N Cyclone II FPGA 144-LQFP Entegre Devre
3.775,81 TL
395,01 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Intel EP2C8T144C8N, Cyclone II serisi FPGA entegresidir ve 144-LQFP (144-TQFP 20x20) kılıfta sunulur. 85 I/O, 8256 logic element ve 165888 bit toplam RAM kapasitesine sahiptir. 1.15V–1.25V besleme aralığında çalışır ve çalışma sıcaklığı 0°C ile 85°C (TJ) arasındadır.
EP2C8T144C8N 144-LQFP kılıfta üretilmiştir. Cyclone® II Field Programmable Gate Array (FPGA) IC 85 165888 8256 144-LQFP
| Ürün Kodu | EP2C8T144C8N |
| Packaging | Tray |
| Package / Case | 144-LQFP |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Voltage - Supply | 1.15V ~ 1.25V |
| Number of Logic Elements/Cells | 8256 |
| Supplier Device Package | 144-TQFP (20x20) |
| Number of LABs/CLBs | 516 |
| Total RAM Bits | 165888 |
| Number of I/O | 85 |
| Programmable | Not Verified |
EP2C8T144C8N Datasheet dosyasına ulaşmak için tıklayınız.
