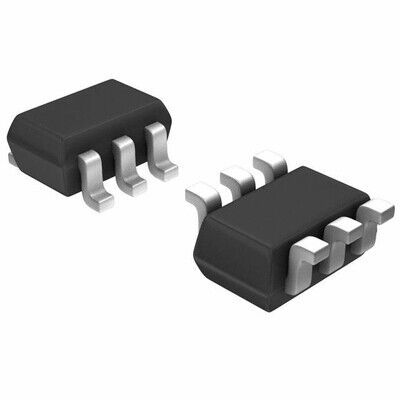

INA211BIDCKT Texas Instruments Akım Algılama Entegre Devre
117,02 TL
12,24 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
INA211BIDCKT
Stok Adedi
1
Fiyat
2,19 USD + KDV
INA211BIDCKT, Texas Instruments üretimi tek kanallı akım algılama (current sense) entegresidir. 2.7 V ile 26 V besleme aralığında çalışır ve -40°C ile 125°C sıcaklık aralığını destekler. SMD montaj için SC-70-6 (6 pin) pakettedir.
INA211BIDCKT IC CURR SENSE 1 CIRCUIT SC70-6
| Ürün Kodu | INA211BIDCKT |
| -3db Bandwidth | - |
| Amplifier Type | Current Sense |
| Current - Input Bias | 28 µA |
| Current - Output / Channel | - |
| Current - Supply | 65µA |
| Gain Bandwidth Product | 14 kHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Type | - |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Part Status | Active |
| Slew Rate | 0.4V/µs |
| Supplier Device Package | SC-70-6 |
| Voltage - Input Offset | 0.55 µV |
| Voltage - Supply Span (Max) | 26 V |
| Voltage - Supply Span (Min) | 2.7 V |
INA211BIDCKT Datasheet dosyasına ulaşmak için tıklayınız.
Bu ürüne ilk yorumu siz yapın!
