Görseller temsilidir, tam özellikler için datasheet'e bakınız.

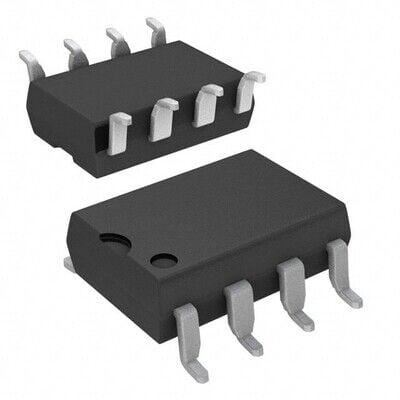

ACPL-7900-500E 8-SMD, Gull Wing Entegre Devre Hakkında
ACPL-7900-500E 8-SMD, Gull Wing kılıfta üretilmiştir. Isolation Amplifier 1 Circuit 8-DIP Gull Wing
| Ürün Kodu | ACPL-7900-500E |
| Packaging | Cut Tape (CT) |
| Package / Case | 8-SMD, Gull Wing |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Isolation |
| Operating Temperature | -40°C ~ 105°C |
| Current - Supply | 18.5mA |
| Slew Rate | - |
| Current - Input Bias | 100 nA |
| Voltage - Input Offset | 600 µV |
| Supplier Device Package | 8-DIP Gull Wing |
| Number of Circuits | 1 |
| Current - Output / Channel | 11 mA |
| -3db Bandwidth | 200 kHz |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 5 V |
