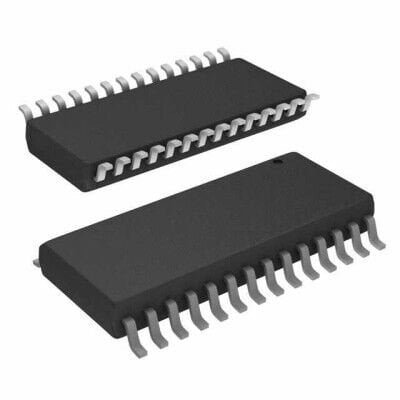

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
6EDL04N06PTXUMA1 PG-DSO-28 Entegre Devre Hakkında
6EDL04N06PTXUMA1 PG-DSO-28 kılıfta üretilmiştir. IC GATE DRVR HALF-BRIDGE 28TSSOP
| Ürün Kodu | 6EDL04N06PTXUMA1 |
| Channel Type | 3-Phase |
| Current - Peak Output (Source, Sink) | - |
| Driven Configuration | Half-Bridge |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| High Side Voltage - Max (Bootstrap) | 620 V |
| Input Type | Non-Inverting |
| Logic Voltage - VIL, VIH | 1.1V, 1.7V |
| Mounting Type | Surface Mount |
| Number of Drivers | 6 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Part Status | Active |
| Rise / Fall Time (Typ) | 60ns, 26ns |
| Supplier Device Package | PG-DSO-28 |
| Voltage - Supply | 10V ~ 17.5V |
