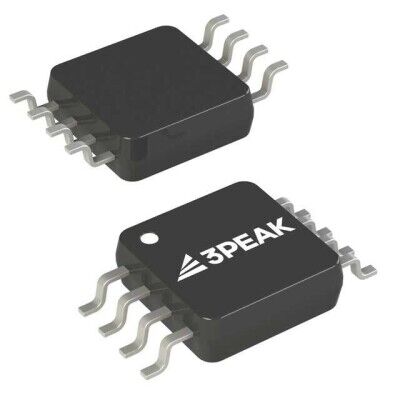

3PEAK TP2122-VR 8-MSOP Entegre Devre
64,58 TL
6,76 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TP2122-VR
Stok Adedi
0
Fiyat
1,20 USD + KDV
3PEAK TP2122-VR, 8-MSOP (3.00mm) kılıfta, 2 kanallı standart op-amp entegresidir. Rail-to-rail, single ended çıkış yapısına sahiptir ve 1.8V–6V besleme aralığında çalışır. SMD montaja uygundur, çalışma sıcaklığı -40°C ile 125°C arasındadır.
TP2122-VR 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) kılıfta üretilmiştir. Standard Amplifier 2 Circuit Single Ended, Rail-to-Rail 8-MSOP
| Ürün Kodu | TP2122-VR |
| Amplifier Type | Standard |
| Number of Circuits | 2 |
| Output Type | Single Ended, Rail-to-Rail |
| Slew Rate | 0.01V/µs |
| Gain Bandwidth Product | 18 kHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 600nA (x2 Channels) |
| Current - Output / Channel | 20 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 6 V |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
TP2122-VR Datasheet dosyasına ulaşmak için tıklayınız.
