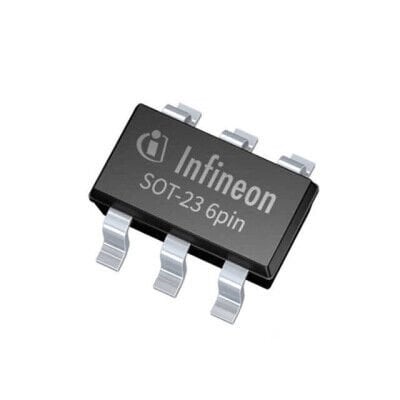

1EDN9550BXTSA1 SOT-23-6 Entegre Devre Hakkında
1EDN9550BXTSA1 SOT-23-6 kılıfta üretilmiştir. High-Side and Low-Side Gate Driver IC Inverting, Non-Inverting PG-SOT23-6
| Ürün Kodu | 1EDN9550BXTSA1 |
| Programmable | Not Verified |
| Driven Configuration | High-Side and Low-Side |
| Channel Type | Single |
| Number of Drivers | 2 |
| Gate Type | MOSFET (N-Channel), SiC MOSFET |
| Voltage - Supply | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 5.2A, 9.4A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 400 V |
| Rise / Fall Time (Typ) | 1ns, 1ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | PG-SOT23-6 |
1EDN9550BXTSA1 Datasheet dosyasına ulaşmak için tıklayınız.
