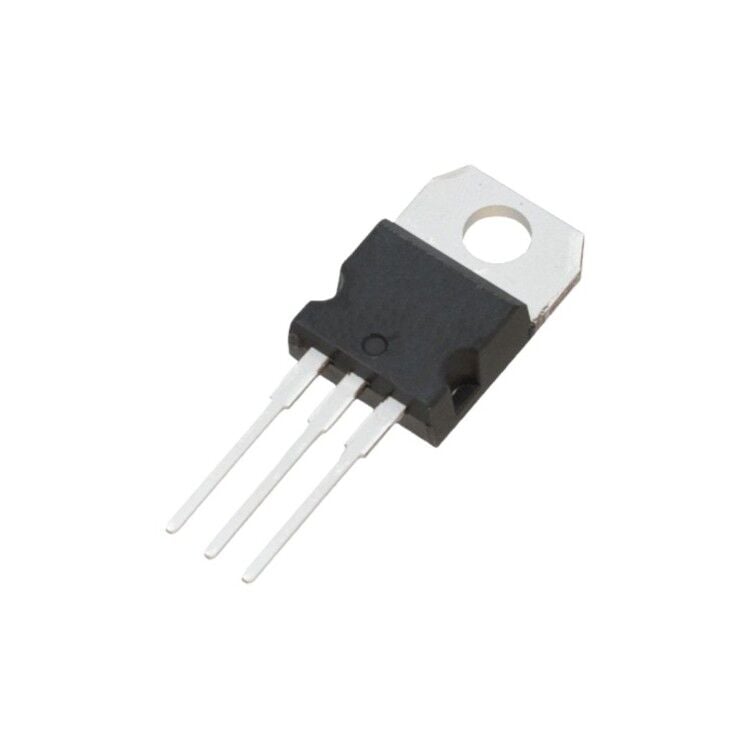

CS19-12HO1 19A 1200V TO-220 Tristör
155,29 TL
16,25 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
CS19-12HO1 19A 1200V TO-220 Tristör
| Kılıf | TO-220-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Çalışma Sıcaklığı | -40°C ~ 125°C |
| Üretici Paket/Kılıf | TO-220-3 |
| Current - Gate Trigger (Igt) (Max) | 28 mA |
| Current - Non Rep. Surge 50- 60Hz (Itsm) | 160A 180A |
| Current - On State (It (RMS)) (Max) | 29 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - Off State | 1.2 kV |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Off State (Max) | 5 mA |
| Current - On State (It (AV)) (Max) | 13 A |
| SCR Type | Standard Recovery |
| Voltage - On State (Vtm) (Max) | 1.6 V |
