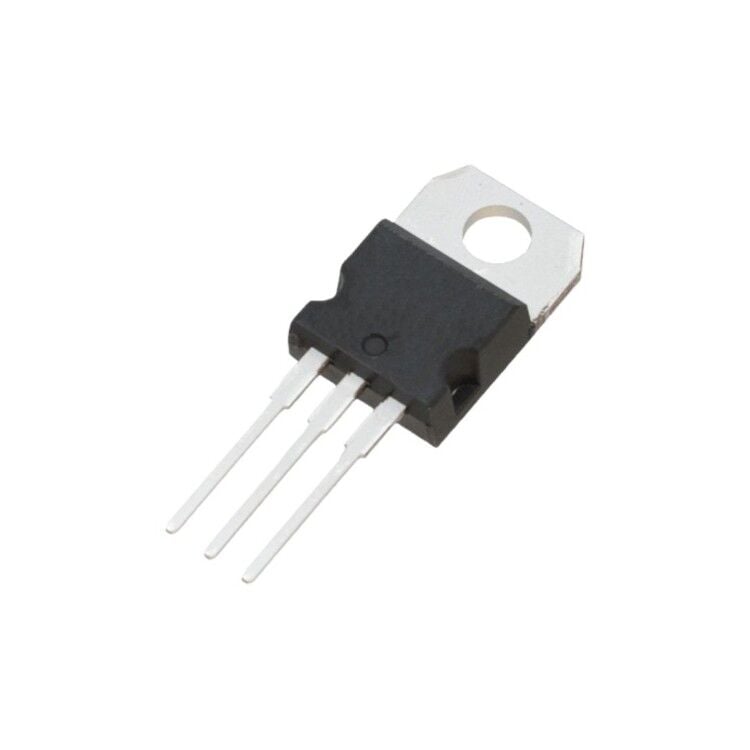

CMA30E1600PB 30A 1600V TO-220 Tristör
176,59 TL
18,47 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
CMA30E1600PB 30A 1600V TO-220 Tristör
| Kılıf | TO-220-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Çalışma Sıcaklığı | -40°C ~ 150°C |
| Üretici Paket/Kılıf | TO-220-3 |
| Current - Gate Trigger (Igt) (Max) | 28 mA |
| Current - Non Rep. Surge 50- 60Hz (Itsm) | 260A 280A |
| Current - On State (It (RMS)) (Max) | 50 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Voltage - Off State | 1.6 kV |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Off State (Max) | 10 µA |
| Current - On State (It (AV)) (Max) | 30 A |
| SCR Type | Standard Recovery |
| Voltage - On State (Vtm) (Max) | 1.7 V |
