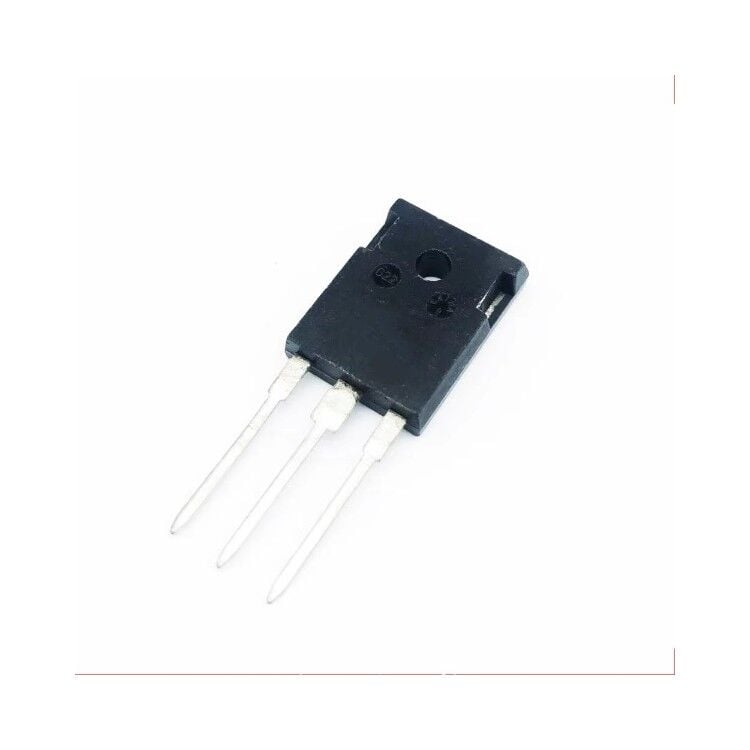

VS-40TPS16 (VS-40TPS16PBF) 40A 1600V TO-247AC SCR Tristör
354,30 TL
37,07 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
VS-40TPS16 (VS-40TPS16PBF) 40A 1600V TO-247AC SCR Tristör
| Kılıf | TO-247-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Çalışma Sıcaklığı | -40°C ~ 125°C |
| Üretici Paket/Kılıf | TO-247AC |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50- 60Hz (Itsm) | 500A @ 50Hz |
| Current - On State (It (RMS)) (Max) | 55 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - Off State | 1.6 kV |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Off State (Max) | 500 µA |
| Current - On State (It (AV)) (Max) | 35 A |
| SCR Type | Standard Recovery |
| Voltage - On State (Vtm) (Max) | 1.85 V |
