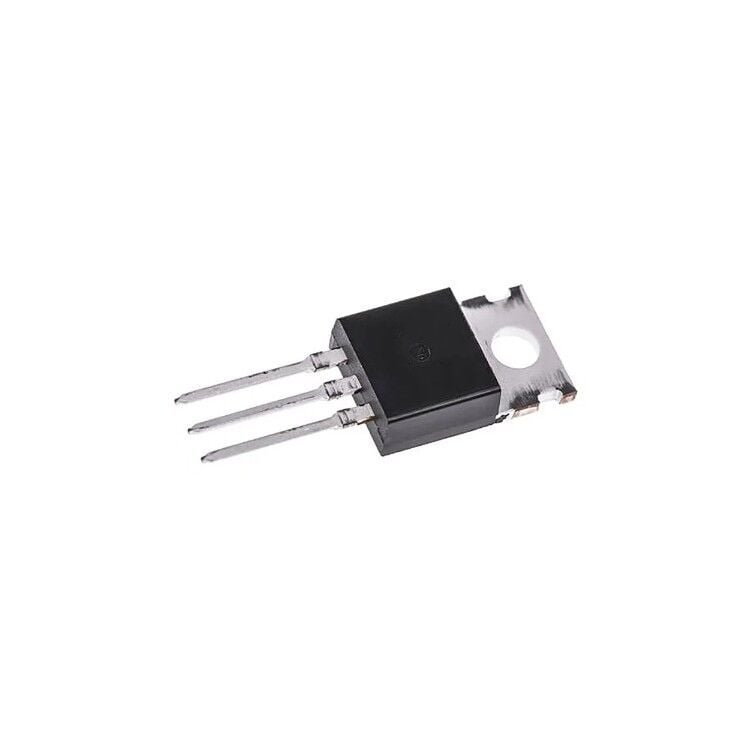

BT152-600R (BT152-600) 20A 650V TO-220 Tristör
49,86 TL
5,22 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
BT152-600R (BT152-600) 20A 650V TO-220 Tristör
| Kılıf | TO-220-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Çalışma Sıcaklığı | -40°C ~ 125°C |
| Üretici Paket/Kılıf | TO-220AB |
| Current - Gate Trigger (Igt) (Max) | 32 mA |
| Current - Non Rep. Surge 50- 60Hz (Itsm) | 200A 220A |
| Current - On State (It (RMS)) (Max) | 20 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - Off State | 650 V |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Off State (Max) | 1 mA |
| Current - On State (It (AV)) (Max) | 13 A |
| SCR Type | Standard Recovery |
| Voltage - On State (Vtm) (Max) | 1.75 V |
