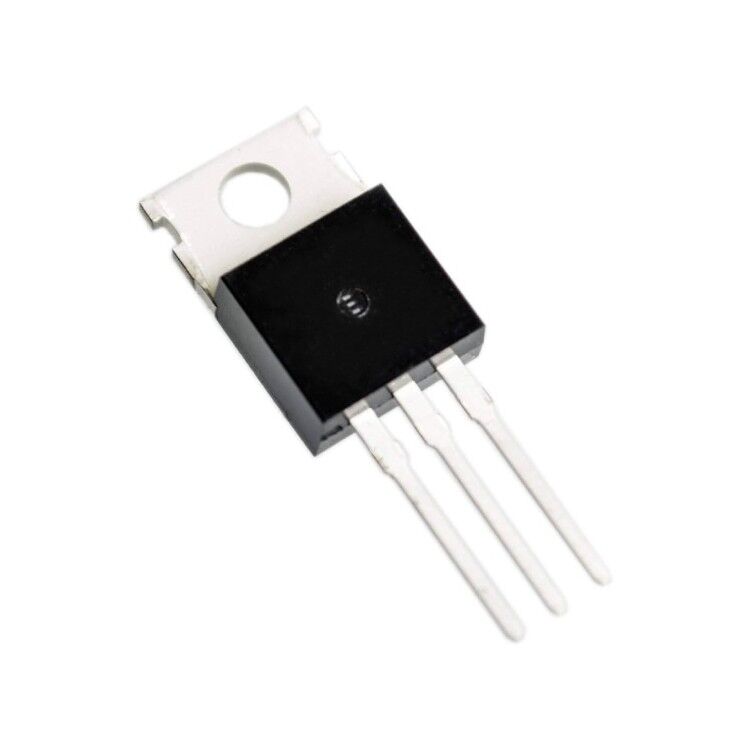

16TTS12 TO-220 16A 1200V SCR Tristör
207,85 TL
21,74 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
16TTS12 TO-220 16A 1200V SCR Tristör
| Kılıf | TO-220-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Çalışma Sıcaklığı | -40°C ~ 125°C |
| Üretici Paket/Kılıf | TO-220-3 |
| Current - Gate Trigger (Igt) (Max) | 60 mA |
| Current - Non Rep. Surge 50- 60Hz (Itsm) | 200A @ 50Hz |
| Current - On State (It (RMS)) (Max) | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Voltage - Off State | 1.2 kV |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Off State (Max) | 500 µA |
| Current - On State (It (AV)) (Max) | 10 A |
| SCR Type | Standard Recovery |
| Voltage - On State (Vtm) (Max) | 1.4 V |
