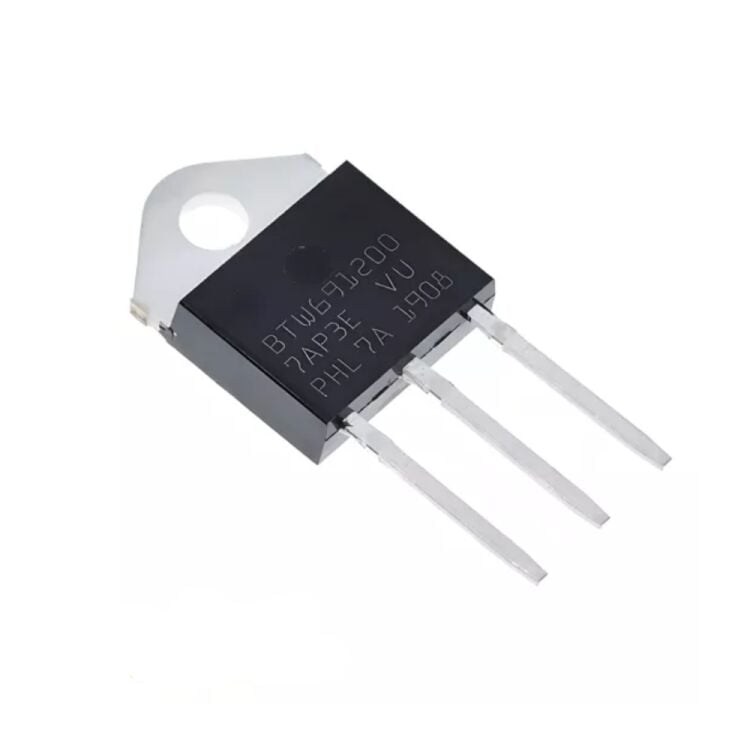

BTW69-1200N / BTW69-1200 / BTW691200 50A 1200V TOP3 SCR Tristör
143,26 TL
14,99 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
BTW69-1200N
Stok Adedi
12
Fiyat
2,75 USD + KDV
BTW69-1200N / BTW69-1200 / BTW691200 50A 1200V TOP3 SCR Tristör
| Kılıf | TOP-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Çalışma Sıcaklığı | -40°C ~ 125°C |
| Üretici Paket/Kılıf | TOP3 |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50- 60Hz (Itsm) | 700A 763A |
| Current - On State (It (RMS)) (Max) | 50 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Voltage - Off State | 1.2 kV |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Off State (Max) | 10 µA |
| Current - On State (It (AV)) (Max) | 31 A |
| SCR Type | Standard Recovery |
| Voltage - On State (Vtm) (Max) | 1.6 V |
