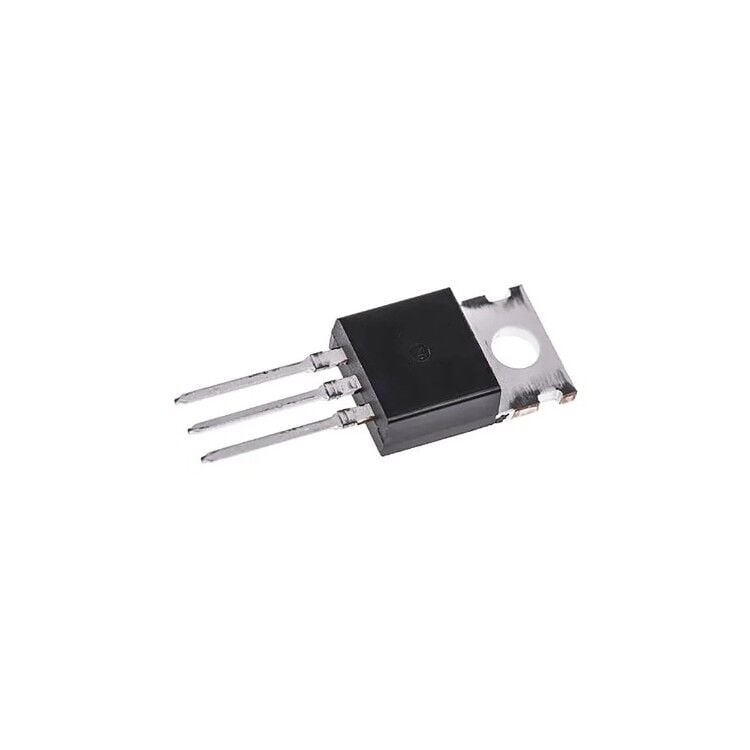

2N6397G 12A 400V TO-220 Tristör
96,08 TL
10,05 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
2N6397G 12A 400V TO-220 Tristör
| Kılıf | TO-220-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Çalışma Sıcaklığı | -40°C ~ 125°C |
| Üretici Paket/Kılıf | TO-220AB |
| Current - Gate Trigger (Igt) (Max) | 30 mA |
| Current - Non Rep. Surge 50- 60Hz (Itsm) | 100A @ 60Hz |
| Current - On State (It (RMS)) (Max) | 12 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - Off State | 400 V |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Off State (Max) | 10 µA |
| Current - On State (It (AV)) (Max) | - |
| SCR Type | Standard Recovery |
| Voltage - On State (Vtm) (Max) | 2.2 V |
